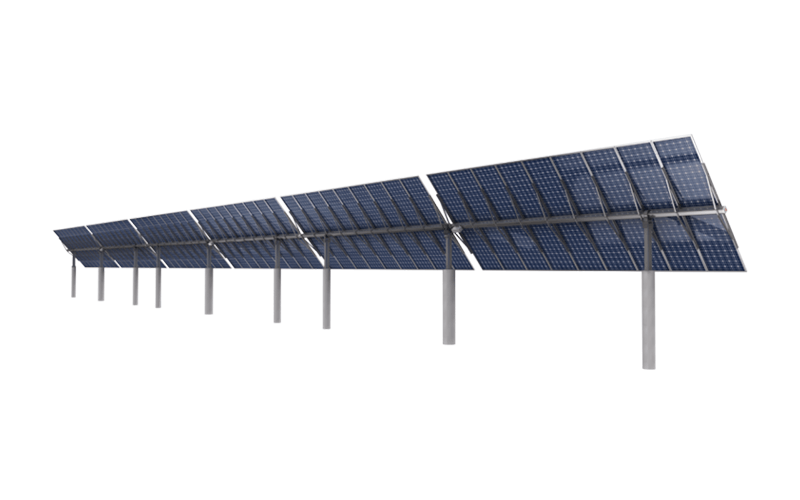

Sonne Tracking System

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:

High reliability:

Electric multipoint distributed drive

Fledged control strategy


High adaptability:

Up to 24% for undulating slopes and 20% for complex terrain utilization


High power generation:

More effective power generation time by Sonne intelligent algorithm


High compatibility:

compatible with 600W+ oversized components


Simple installation:

Modular, standardized and simple design


Low maintenance costs

Component interchangeability


Tracking type

Horizontal single-axis, independent row.

String voltage

1000 VDC or 1500 VDC

Tracking rang

± 60°

Drive type

High accuracy slew gear

Motor typ

24V DC motor

Typical row size

Max 120 modules, depending on module string ler

Modules supported

Compatible with all panels

Foundations

Ramming piles/ Micropile piles/ PHC piles Steel

Materials

Q235,Q355,Q420,Q460 or equivalent

Coating

HDG, Pre galvanizing, Pre ZAM

Design load

According to site requirement

Operating temperature range

-30°C to 60°C
